Puff sheet and Pipe section

Get a Price/Quote

Product Details:

Surface Treatment Galvanized / Pre-coated / Aluminum Cladding
Roof Material PUF Insulated Panels
Technics Machine Pressure Foamed
Usage & Applications Cold Storage, Refrigeration Ducting, Industrial & Commercial Insulations, Roofing & Wall Cladding
Features Light Weight, Fire Retardant, Moisture Resistant
Height As per specification
Material Polyurethane Foam (PUF)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Puff sheet and Pipe section Product Specifications

Surface Treatment Galvanized / Pre-coated / Aluminum Cladding
Length 2 m, 2.5 m or as required
Material Polyurethane Foam (PUF)
Tile Material PUF Sandwiched with GI/Aluminum Sheet
Width 1 m (Sheet), As per pipe size (Pipe Section)
Size Customized
Thickness 20 mm to 100 mm
Roof Material PUF Insulated Panels
Pattern Plain
Features Light Weight, Fire Retardant, Moisture Resistant
Heat Transfer Coefficient 0.02 Kcal/m hr C
Technics Machine Pressure Foamed
Shape Rectangular (Sheet), Cylindrical (Pipe Section)
Usage & Applications Cold Storage, Refrigeration Ducting, Industrial & Commercial Insulations, Roofing & Wall Cladding
Height As per specification
Tile Type Insulated
Type Sheet and Pipe Section

Edge Type Straight / Tongue & Groove (sheet); Semi-cylindrical (pipe)
Installation Easy to cut, fix, and install
Temperature Range -200C to +110C
Dimension Tolerance 1.5mm
UV Stability Good with appropriate cladding
Environmental Compliance CFC & HCFC Free, Eco-friendly insulation
Compressive Strength Greater than 0.2 MPa
Colour Yellow (PUF core), Silver (if foil-faced)
Cladding Option Aluminum foil, Kraft paper, or GI sheet on request
Density 36-40 kg/m3
Closed Cell Content Above 90%
Water Absorption Less than 2% by volume
Fire Resistance Self-extinguishing

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Puff Sheet & Pipe Section ' category

Continuous & Discontinuous panels Size : Standard and Custom sizes available Width : 1000 mm (Standard effective), Material : Other, Polyurethane Foam with Metal Facing Length : Up to 12 meters (Customized on request) Thickness : 30 mm, 40 mm, 50 mm, 60 mm, 80 mm, 100 mm Shape : Rectangular/Trapezoidal Heat Transfer Coefficient : 0.022 W/mK (PUF Core) Type : Roofing/Wall Panel Tile Material : Other, Steel Sheet / Aluminum Sheet with PUF Insulation Usage & Applications : Cold Storage, Food Processing, Warehouses, Industrial and Commercial Buildings, Clean Rooms Technics : Continuous and Discontinuous Production Features : High Thermal Insulation Tile Type : Other, Continuous and Discontinuous Sandwich Panel

Send Inquiry

Pipe Section Size : Varies (customized sizes available) Width : Varies as per pipe diameter Material : Other, Resin Bonded Glass Wool Length : 1 meter standard (custom lengths available) Thickness : 25mm, 40mm, 50mm (custom thickness available) Shape : Cylindrical Heat Transfer Coefficient : Low (Good Insulation) Type : Pipe Section Pattern : Plain/Uncoated or Foilfaced Usage & Applications : Insulation of hot or cold water pipes, industrial process pipes, HVAC ducts and chillers Technics : Centrifugal spinning process Features : Thermal Insulation, Fire Resistant, Lightweight

Send Inquiry

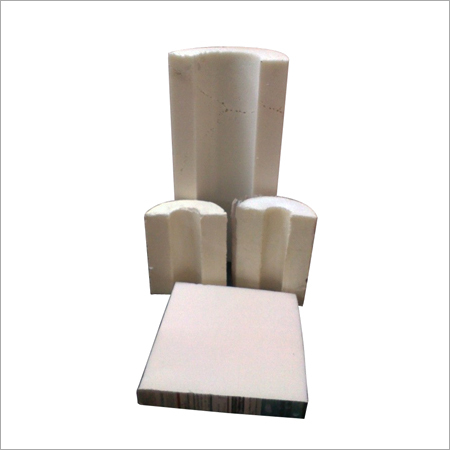

Puff Pipe Section Sheets Size : Customizable Width : Standard Material : Other, Puffed insulation material Length : Standard Thickness : Varies as per requirement Shape : Pipe section and flat sheets Heat Transfer Coefficient : Low Type : Pipe section sheets Pattern : Smooth Tile Material : Other, Insulated tiles Tile Type : Other, Flat and curved

Send Inquiry

Pipe Sections Size : Customized Width : Customized Material : Other, Polyurethane Foam Length : Varied Thickness : Standard Shape : Cylindrical Heat Transfer Coefficient : High Type : Pipe Insulation Sections Pattern : Smooth

Send Inquiry
